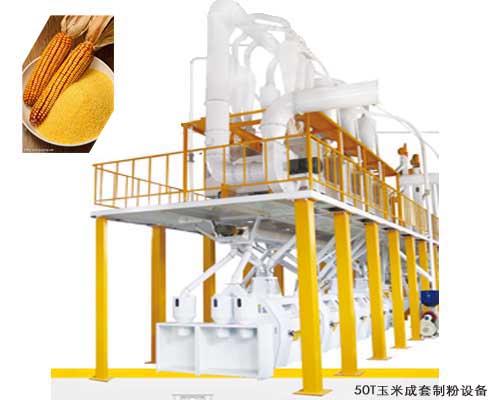

Complete set maize processing equipment

Keywords: Advanced / Quality / Leading

This series of equipment is used for producing refined low-fat maize flour and/or maize grits.
Main machines:

Self-balance vibration sieve, Classifying destoner, Fan, Suction channel, Peeling crusher, Embryo selector, Classifying sifter, polisher, milling machine, and plansifter etc.

Technical features:

1. Maize bran, maize germ, maize grits, maize flour, and maize oil

Adopt advanced processing technology of peeling, degerminating, grits making and flour milling. Co-production is allowed for 2-3 kinds of maize grits of different grit size, and 2-3 kinds of maize flour. The extracted high-purity maize germ can be used for processing maize oil.

2. Good taste and high extraction rate

The maize flour and maize grits that produced by our equipment has lower fat content, lower bran content, and also has good taste, rich nutrition, bright color, long storage period, good quality and high extraction rate.

3. The complete set equipment includes the following parts:

1) Raw grain cleaning (sieving, air separation, destoning)

2) Crushing and Embryo selecting ( peeling crushing, classifying, embryo selecting)

3) Grits making and flour milling (grits making, flour milling, embryo purifying).  For the milling part, the Co-production is allowed for maize grits maize flour. It is easy to adjust.

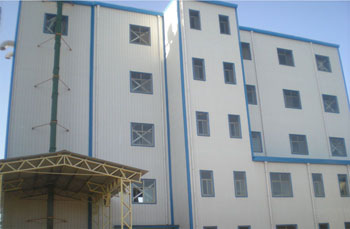

4. Steel platform structure and steel structure multi-storey building

Steel platform structure and steel structure multi-storey building are available for option according to the requirements.

Technical Data:

Model	Production Capacity (ton of maize)	Power (kW)	Size (L*W*H, m)	Type of products
10T	10T/24h	40	8.4ⅹ3.4ⅹ3.8	Maize flour
30T	30T/24h	100	15ⅹ7ⅹ4.5	Maize flour and maize grits

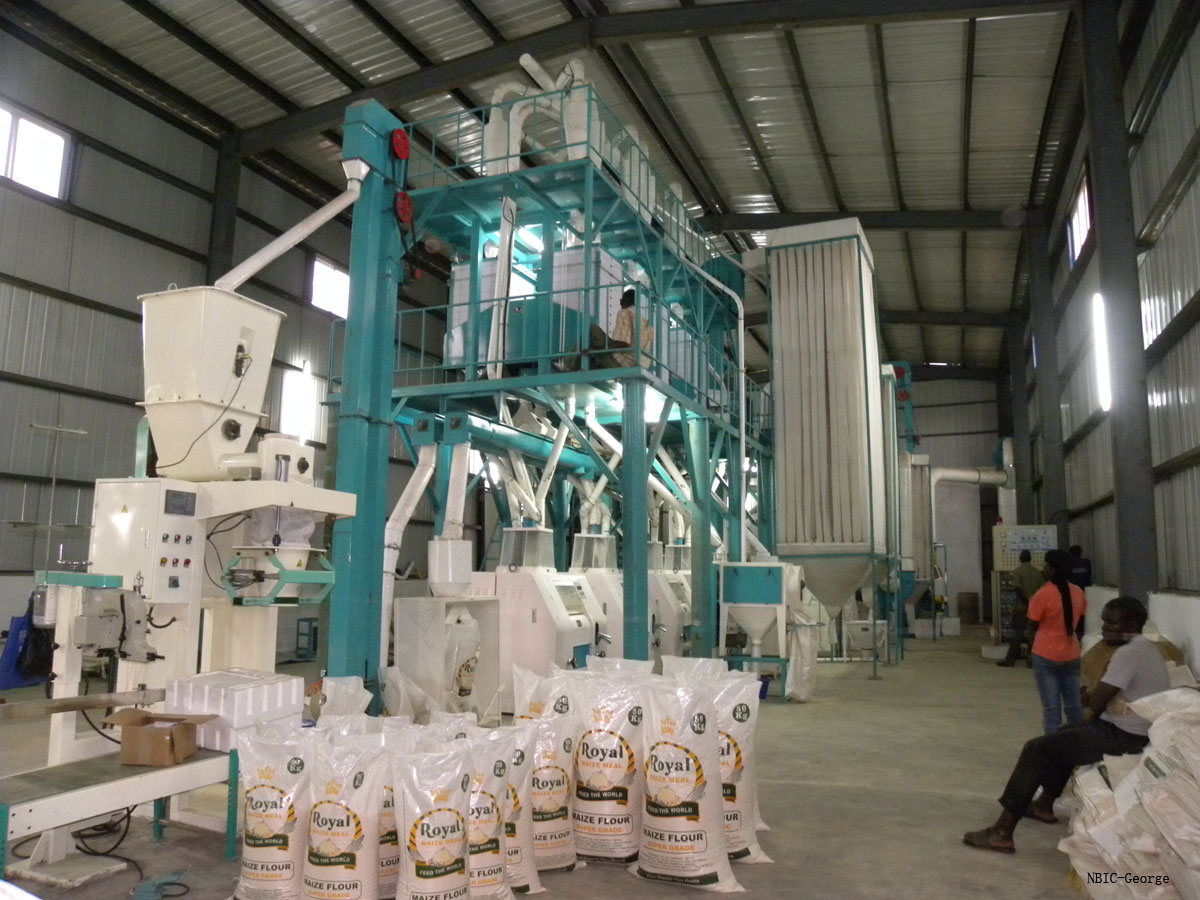

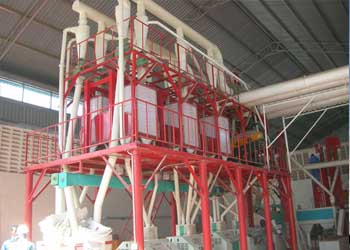

50T	50T/24h	160--200	26.4x7x7.5
100T	100T/24h	250--300	22.4×10×26
200T	200T/24h	530	35×11×26
